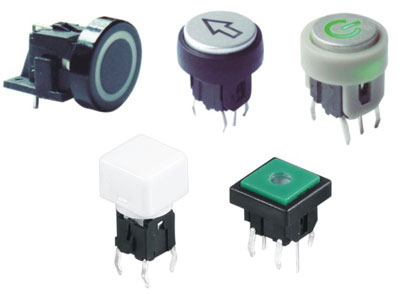

帶燈輕觸開關R590B

• Rating：12VDC 50mA

• Contact Resistance：100mΩ Max

• Insulation Resistance：100MΩ min(250VDC)

• Dielectric Strength：250VAC 50/60Hz FOR 1 min

• Operating Force：160±50g/250±80g

• Electric Life：100,000 cycles

• Operating Temperature Range：-20℃ ~ + 70℃

• Travel：0.25±0.1 mm

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Electric Life	Operating Temperature Range	Travel	PDF下載
R590B-101L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-101	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-102L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-102	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-111L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-111	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-112L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-112	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-203L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-203	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-204L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-204	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-223L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-223	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-224L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-224	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-253L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-253	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-254L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-254	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1810L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1810	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1814L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1814	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-141L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-141	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-142L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-142	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-140L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-140	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-108L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-108	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1013L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1013	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-178L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-178	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1713L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1713	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1010L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1010	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1014L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-1014	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-107L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-107	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3011L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3011	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3311L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3311	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3012L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3012	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3612L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-3612	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-305L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-305	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-2RL(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-2R	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-203RL(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-203R	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-101RL(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-101R	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-107RL(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-107R	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-142RL(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-142R	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590B-04□L-□□	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
